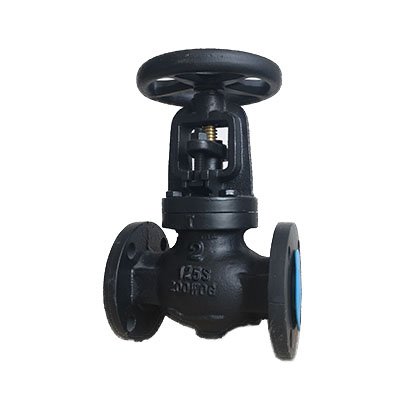

Technical Specification:

Size: DN40-DN300

Pressure:SP-85 125LB

Design:MSS SP-85

Face to Face: ANSI B16.10

Flanges:EN1092-2 PN16

Hydraulic test: MSS SP-85

Seat Test:13.8bar

Shell Test:24.1bar

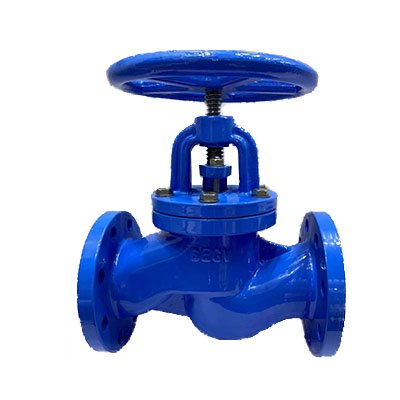

Technical Specification:

Size: DN40-DN300

Pressure:F1 PN16

Design:DIN3356

Face to Face: DIN3202 F1

Flanges:EN1092-2 PN16

Hydraulic test: ISO 5208

Seat Test:17.6bar

Shell Test:24bar

Bolted bonnet

Thread end

Thread bonnet available

Surface treatment : RAL5017

Epoxy coating

Max temperature 100℃

Technical Specification:

Size: DN40-DN600

Pressure: BFV01-DIN3202

Design: DIN3202

Face to face:DIN3202 K1

Flange Drilling:EN1092-2

Mounting pad:ISO5211

Inspection and Test:API598

Seat Test: 17.6bar

Shell Test: 24bar

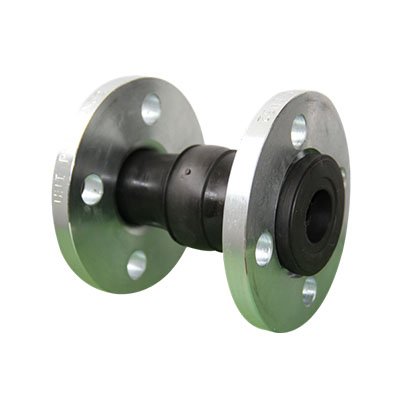

Technical Specification:

Size: DN32-DN600

Pressure:EJ01-Fland

Working Pressure:1.6Mpa (16kg/CM²)

Breaking Pressure:4.8Mpa(48kg/CM²)

Temperature:-20℃ to+115℃

Application:Fresh Water,Sea Water,Hot Water,Air and Gas

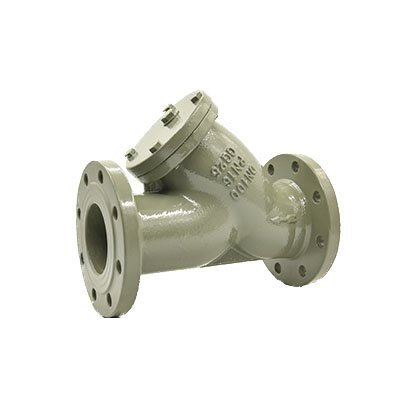

Technical Specification:

Size: DN15-DN400

Pressure: 01-Y Type

Face to Face:DIN3202 F1

Flanges:EN1092-2 PN16

Hydraulic test:ISO 5208

Seat Test: 17.6bar

Shell Test: 24bar

Applicable Standards:

Size: in.2(50mm)-in.12(300mm)

Pressure: BS1074—PN10/PN16

Flange Drlledacc

To BS4504/EN1092-2

Face To Face Dimensionacc.

To BS4504/EN1092-2

Flange Raised Face Flange

Maximum Working Pressure 16Bar(1.6mpa)

Maximum Working Temperture 100℃

PAT: 20191692464.8

Technical Specification:

Size: DN50-DN250

Pressure: F4/F5

Design& Manufacture:DIN3357

Face to face:DIN3202 DN50-DN100 F4/14

DN125-DN250 F5/15

Flanges:EN1092-2 PN16

Mounting pad:ISO5211

Hydraulic test:ISO 5208

Seat Test: 17.6bar

Shell Test: 24bar

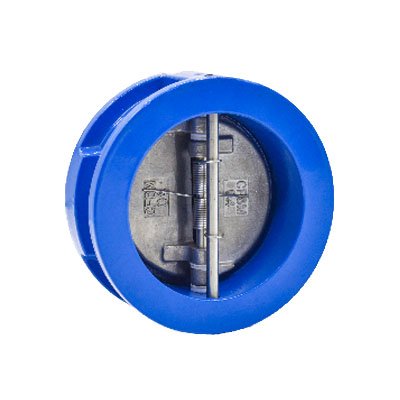

Technical Specification:

Size: DN50-DN600

Pressure: Dual Plate Wafer Check Valve

Design:DIN3356;API594

Face to face:DIN3302;ANSI  B16.10

Hydraulic test:API598 Seat Test: 17.6bar Shell Test: 24bar

Technical Specification:

Size: DN50-DN600

Pressure: EN 1171

Valve design according to EN 1171、DIN3352、EN 1074-1 and 2

Face to face dimensions according to EN 558-1 Series 14/15、DIN3202 F4/F5

Standard flange drilling to EN 1092-2、ISO 7005-2

Hydraulic test according to EN 12266、ISO5208

Technical Specification:

Size: DN40-DN1200

Pressure: BFV01-DIN3202

Design: API609

Face to face:ANSI B16.10

Flange Drilling:ANSI CL150

Mounting pad:ISO5211

Inspection and Test:API598

Seat Test: 17.6bar

Shell Test: 24bar

Technical Specification:

Size: DN15-DN400

Pressure: 01-Y Type

Connection Type:BSP,NPT Female threaded to ISO228-1

Movement:

-Lc:Axial compression

-Le:Axial extension

-Li:Lateral movement
